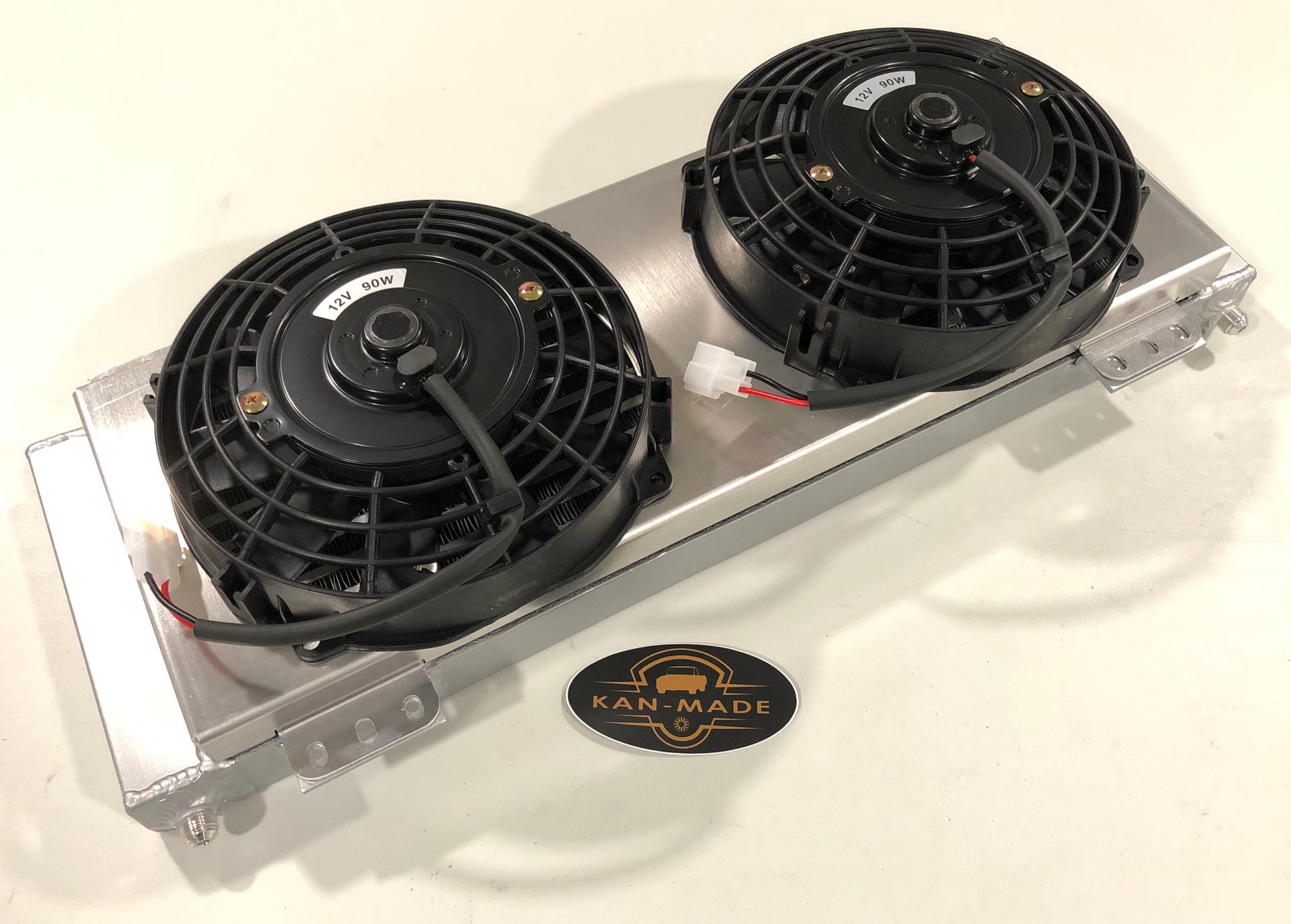

Transmission cooler kit including Huron Speed Silver Series transmission cooler, dual fan shroud, and two 8" electric fans. The Huron Speed transmission cooler is a direct replacement for the Tru-Cool 40k, but is even more efficient and includes welded 6an male fittings.
This transmission cooler kit is designed to be used in applications where the transmission cooler is remotely mounted or is mounted in such a way that it receives poor air flow.
Mounting hardware is included to mount the fans to the shroud. The shroud is designed to be mounted to the transmission cooler mounting tabs using the hardware that comes with the transmission cooler. The fully assembled dimensions are 9-1/4" x 22-1/2" x 5".

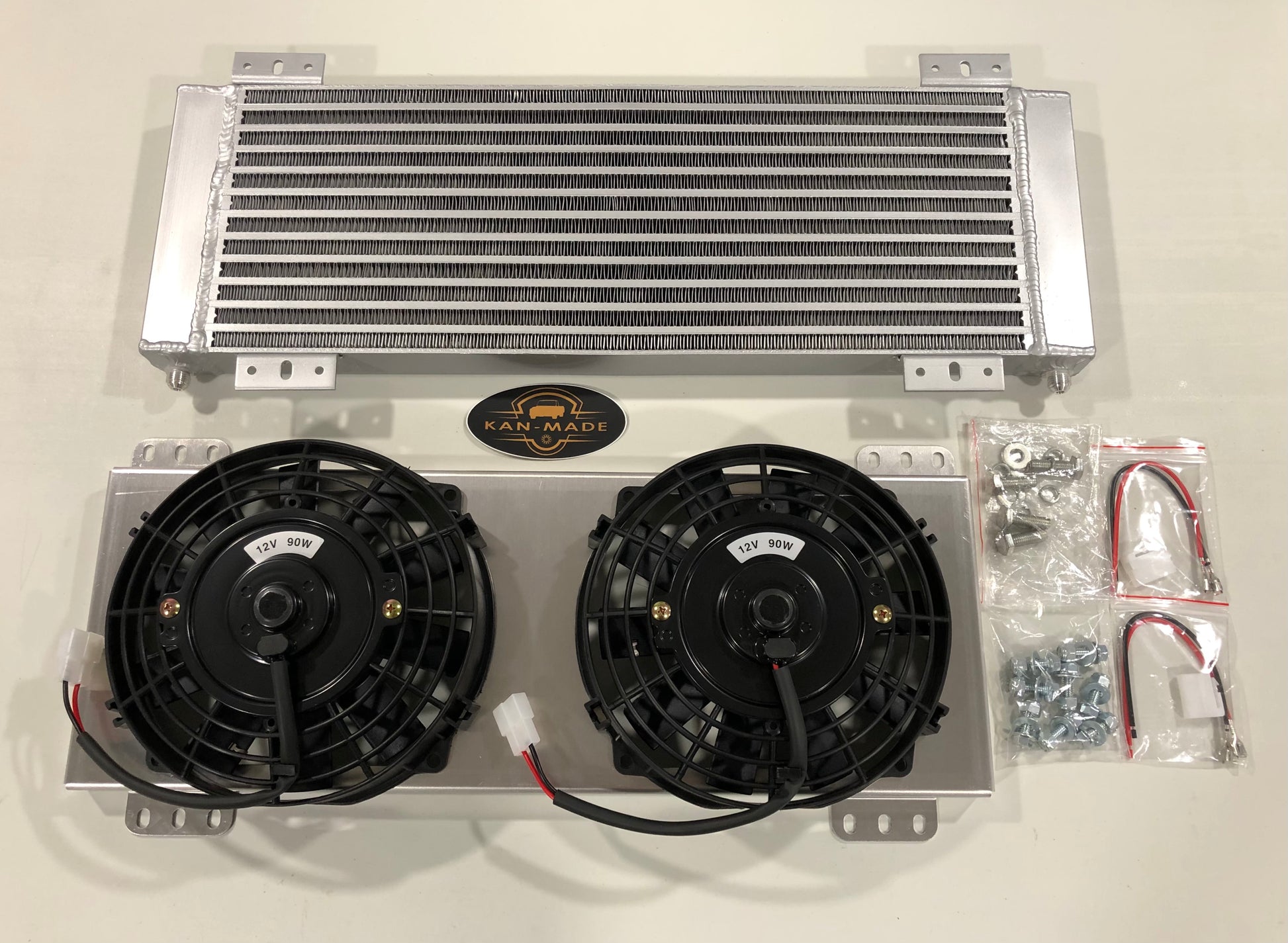

Includes:

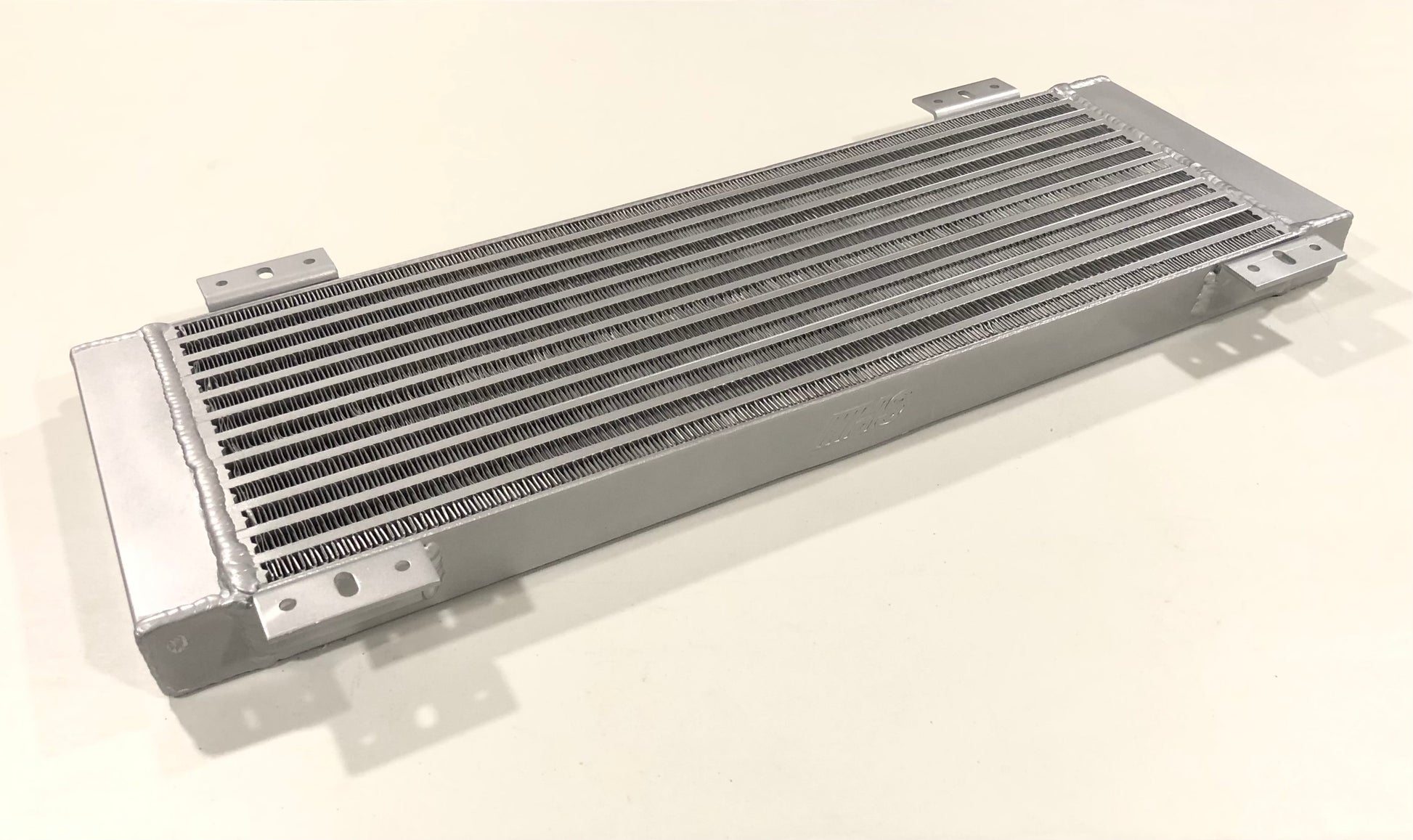

(1x) Huron Speed Silver Series transmission cooler
Cooling Plate Type: Bar and Plate
Number of Plates: 13
Cooler Size: 8-1/2" x 22" x 1-1/4"
Cooler Fitting Size: 6an male
Mounting Hardware

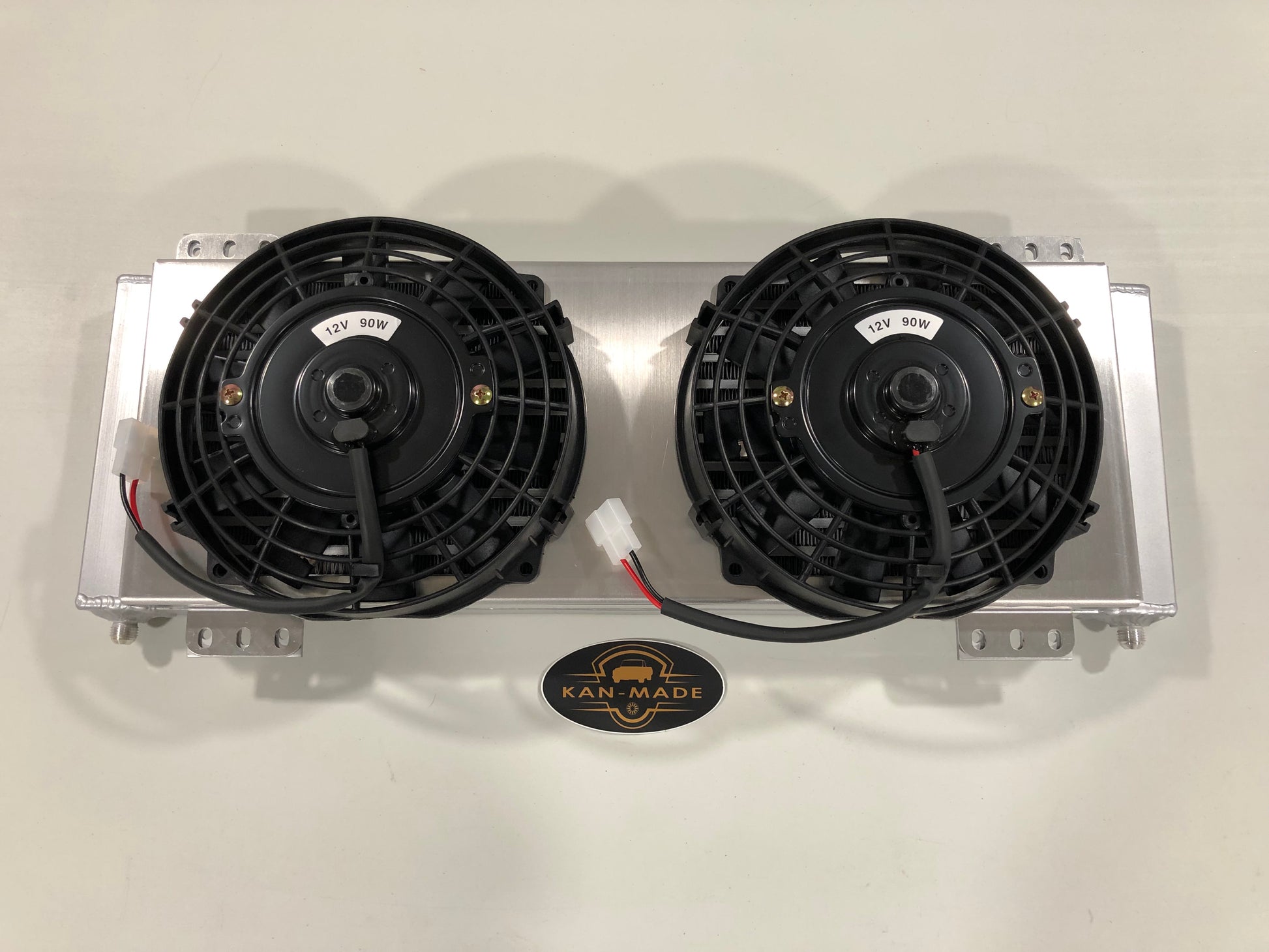

(2x) 8” American Volt 12V Electric Fans
Maximum Advertised CFM: 513 cfm
Brushed Motor
Thickness: 2.5”
10 Blades
90w
Amp Draw: 7.5 amps (per fan)

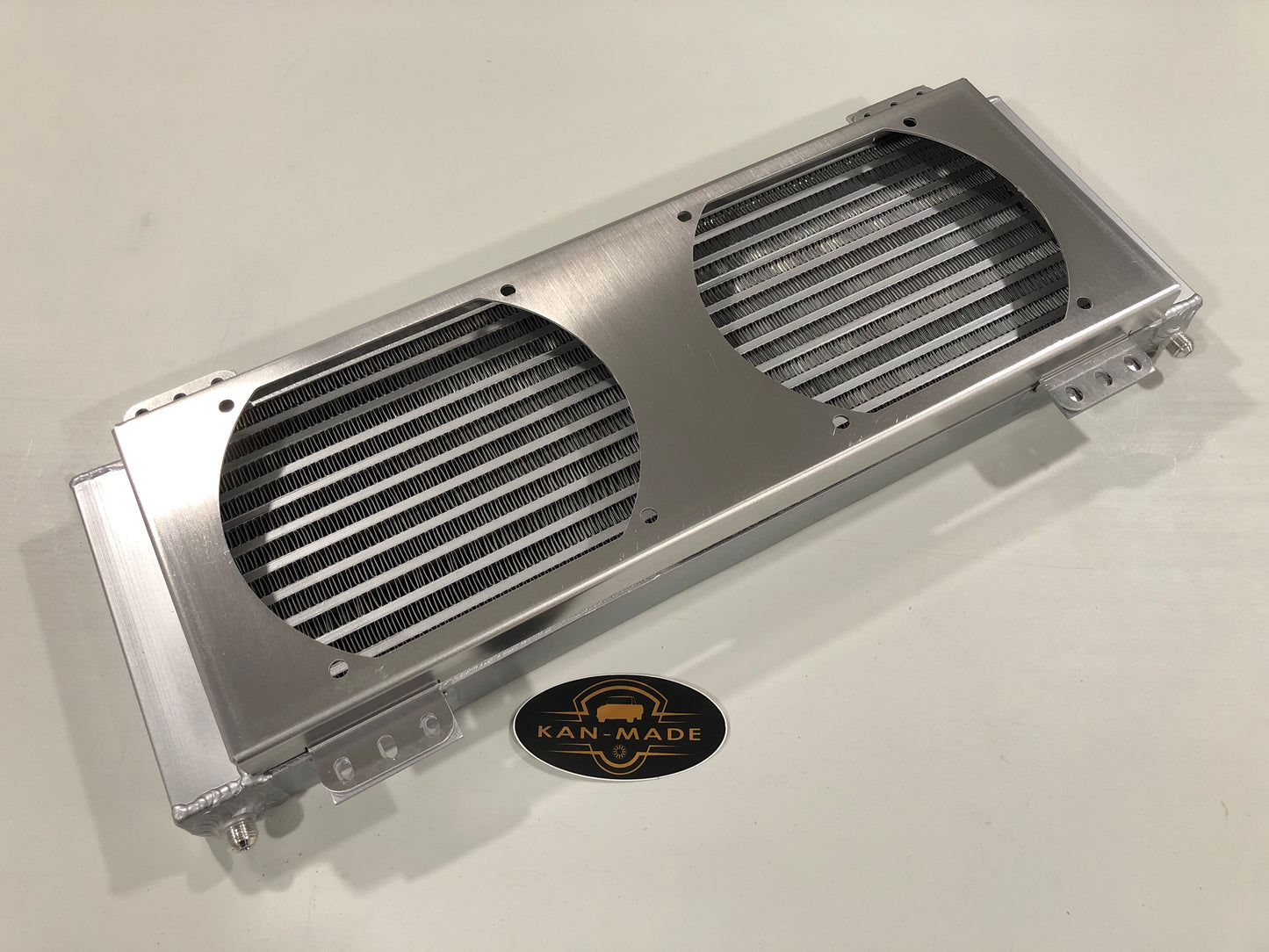

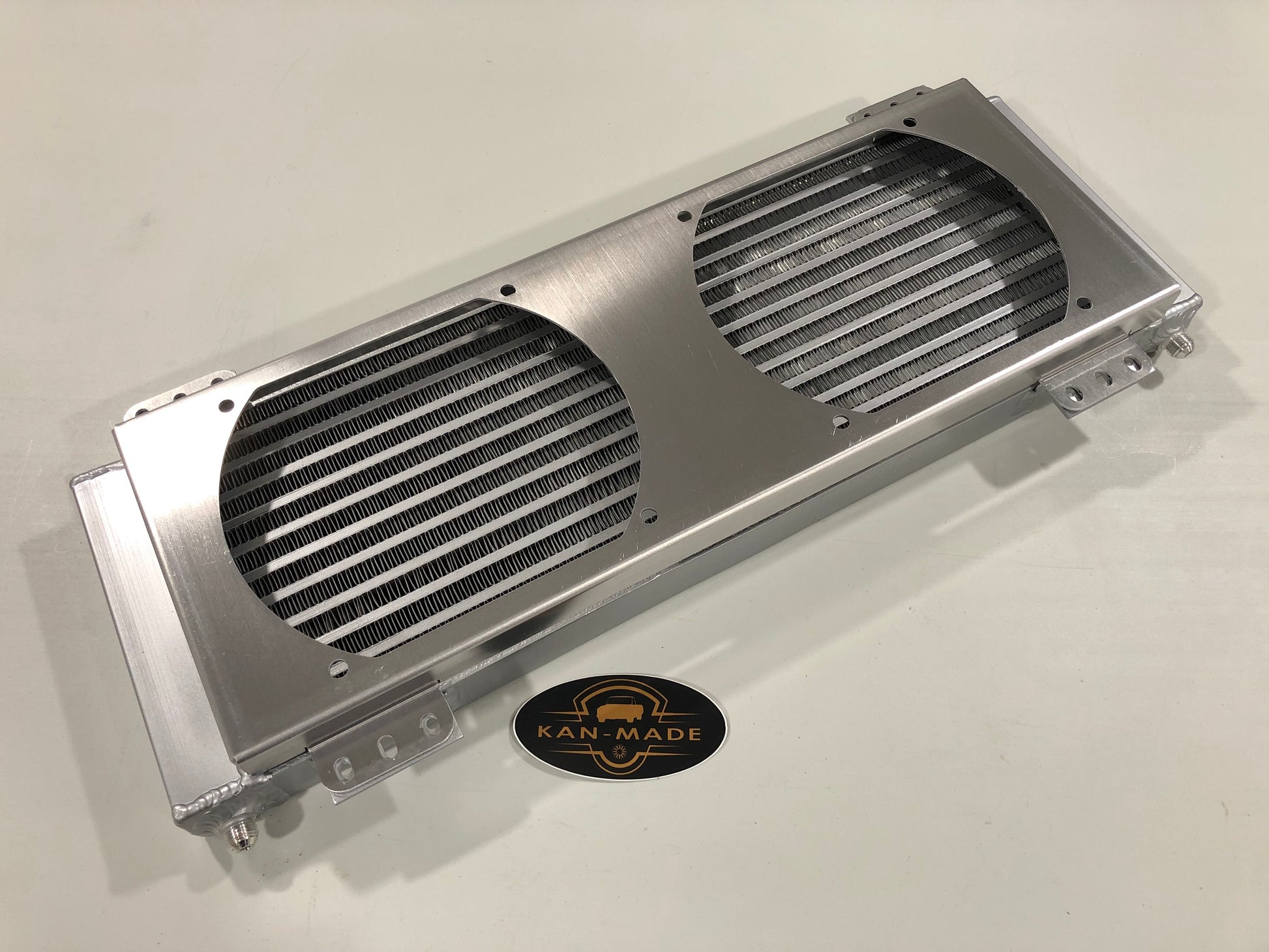

(1x) Custom Fan Shroud
5032-H32 Aluminum Construction
1” Tall
Maximizes the efficiency of the cooler and fans
Designed and made in the USA.
Professional installation is recommended.
Shipping
Free shipping to lower 48.
Items ship from Salina, KS (67401).
Typically ships within 1-2 days, however it may take longer depending on non-stocked component lead times.
Warranty
No warranty is provided. If you are unsatisfied with the product or have questions, please contact me.
